ARCHIVE ENTRY // N° 006

Geon F1-8X V2

Cool silver aluminium under a hot deck — purple, grey and volt green, gasket-mounted.

TKL · WINKEYLESS O-RING GASKET CEM PCB GMK NERVEWRECKER
FIG. 0859 — SIDE ELEVATION SCROLL ▾

Specification

BUILD SHEET // 006-GEON
01
Chassis
Geon F1-8X V2 — Silver / GrayWinkeyless, aluminium anodized
02
Switches
Cherry MX BlackDry, spring-swapped
03
Plate / PCB
Aluminium, CEM PCBO-ring gasket mount
04
Stabilizers
Knight V4Tuned, no rattle
05
Keycaps
GMK NervewreckerDoubleshot ABS — purple, grey & volt green

Plates

9 EXPOSURES // FUJIFILM

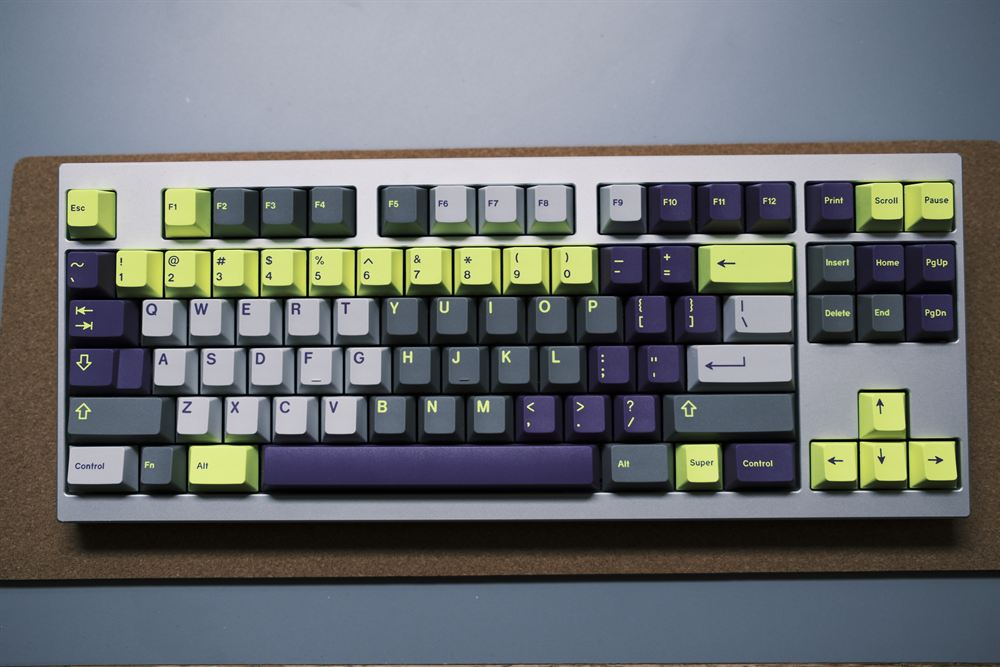

Top-down plan view of the Geon F1-8X with GMK Nervewrecker
0861 PLAN VIEW — NERVEWRECKER

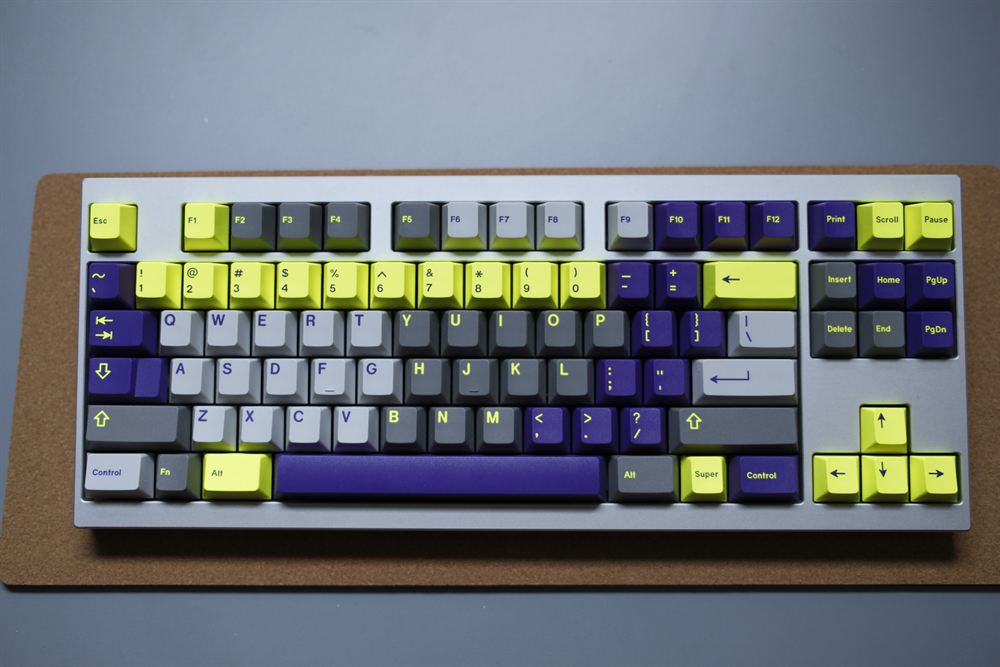

Top-down plan view showing the purple spacebar and volt accents
0862 PLAN — PURPLE SPACEBAR

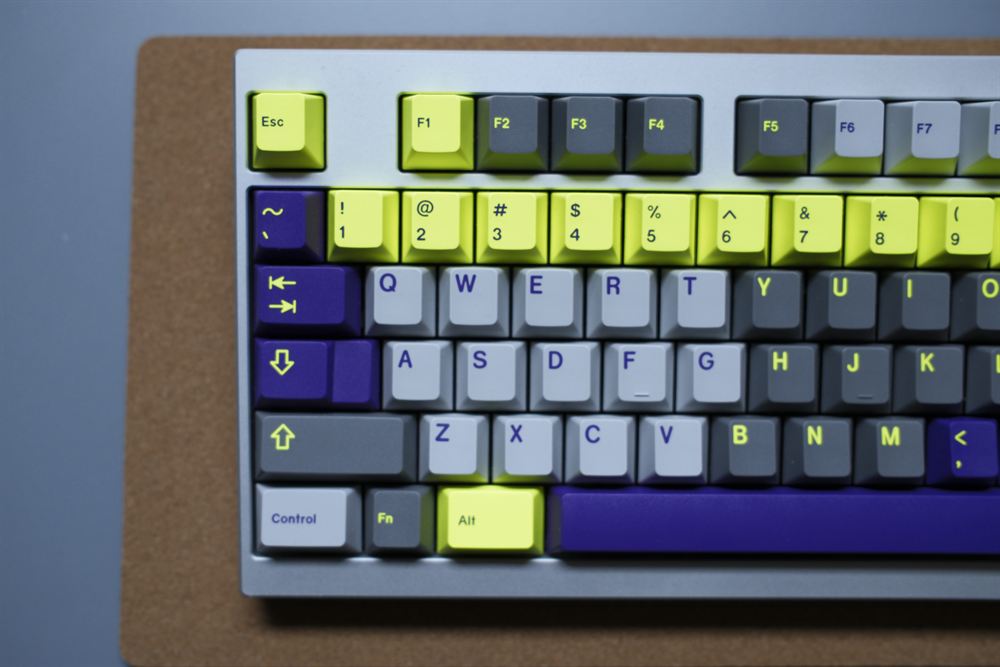

Three-quarter over the Esc and alphas
0865 THREE-QUARTER — ALPHAS

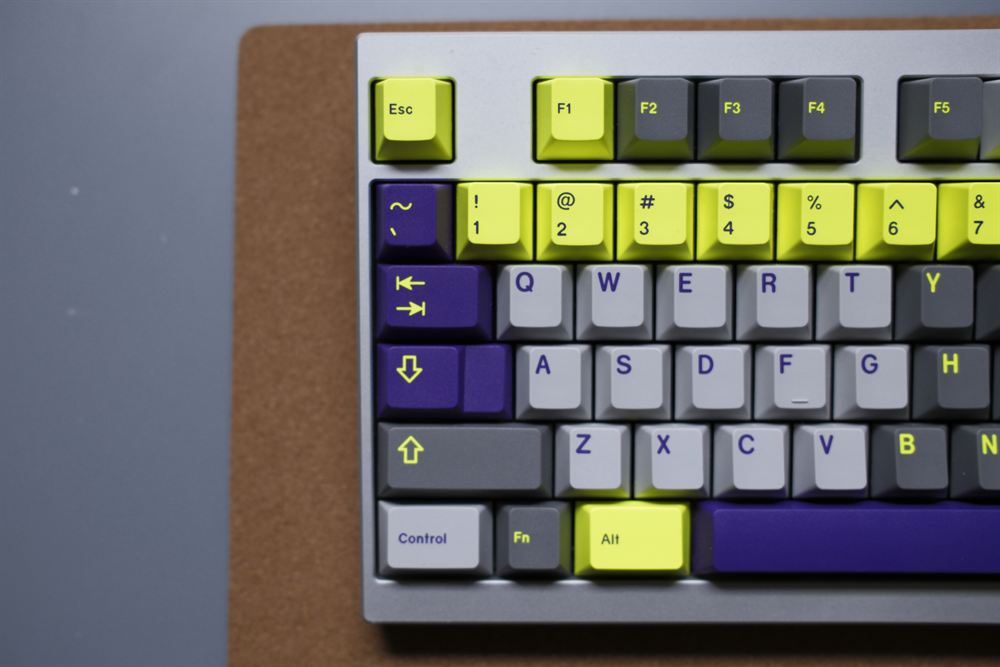

Close-up of the volt-green Esc and function row
0866 DETAIL — VOLT ESC

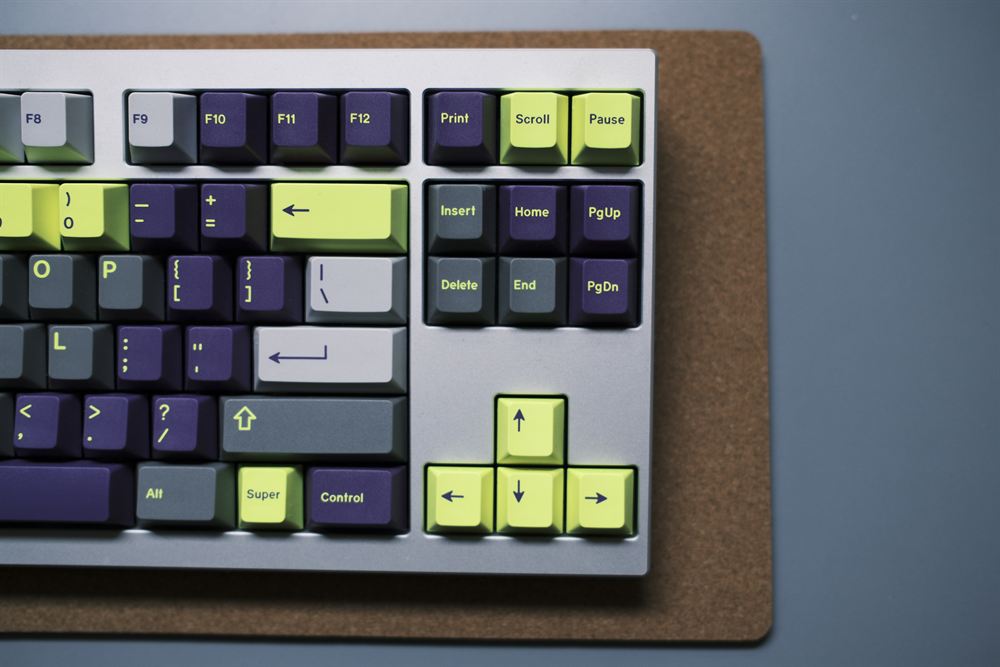

Right cluster with navigation keys and volt arrow cluster
0860 NAV CLUSTER — ARROWS

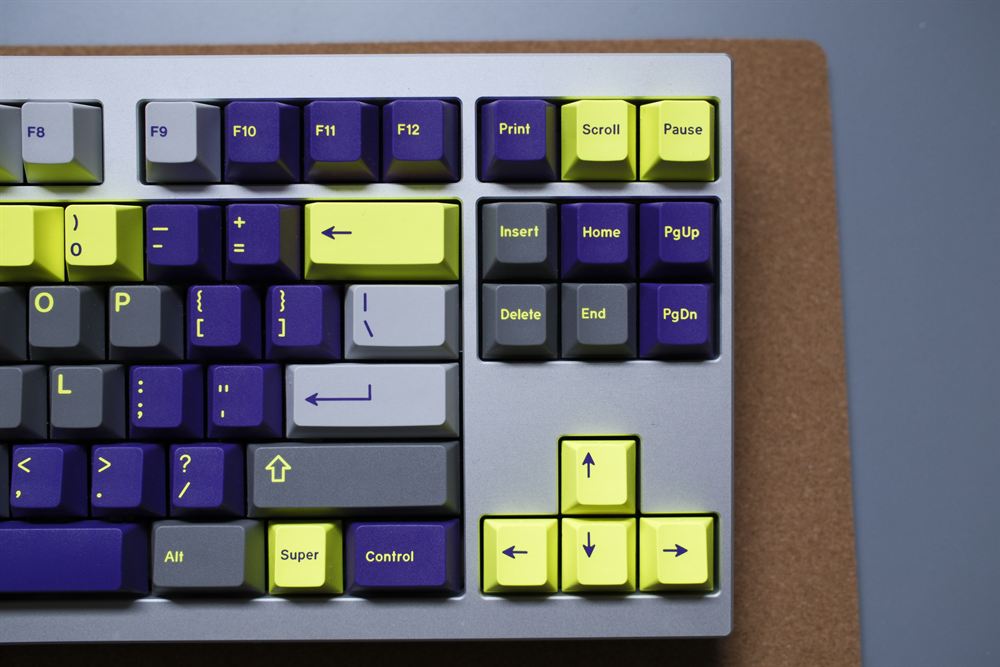

Right cluster detail with volt arrows and purple modifiers
0867 DETAIL — RIGHT CLUSTER

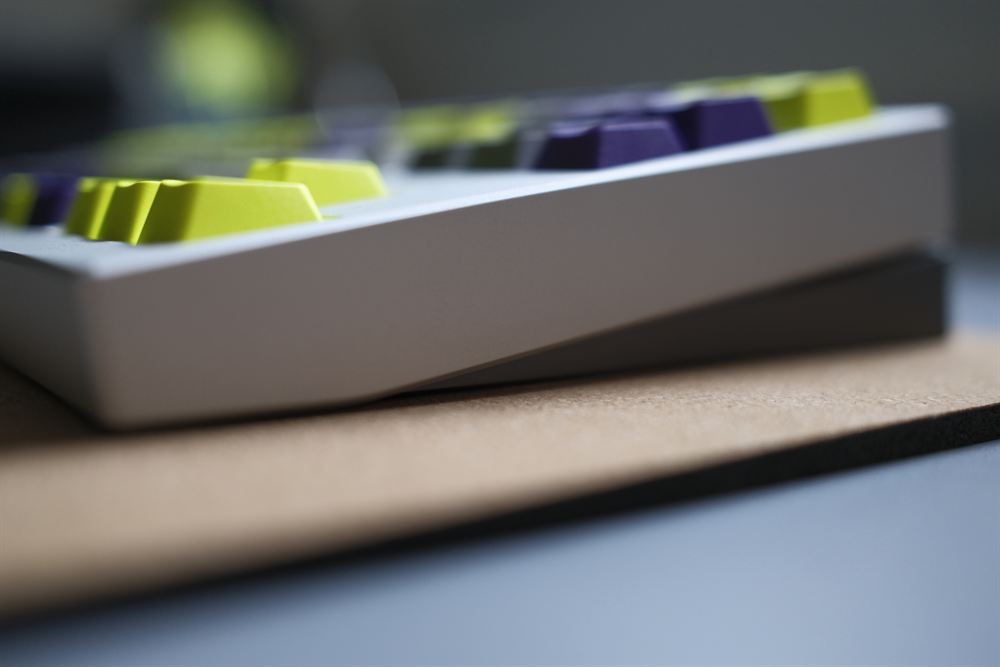

Side profile macro of the silver case with green and purple keys
0863 SIDE PROFILE — DETAIL
Front edge of the silver anodized case, two-tone gasket seam
0864 FRONT EDGE — GASKET SEAM

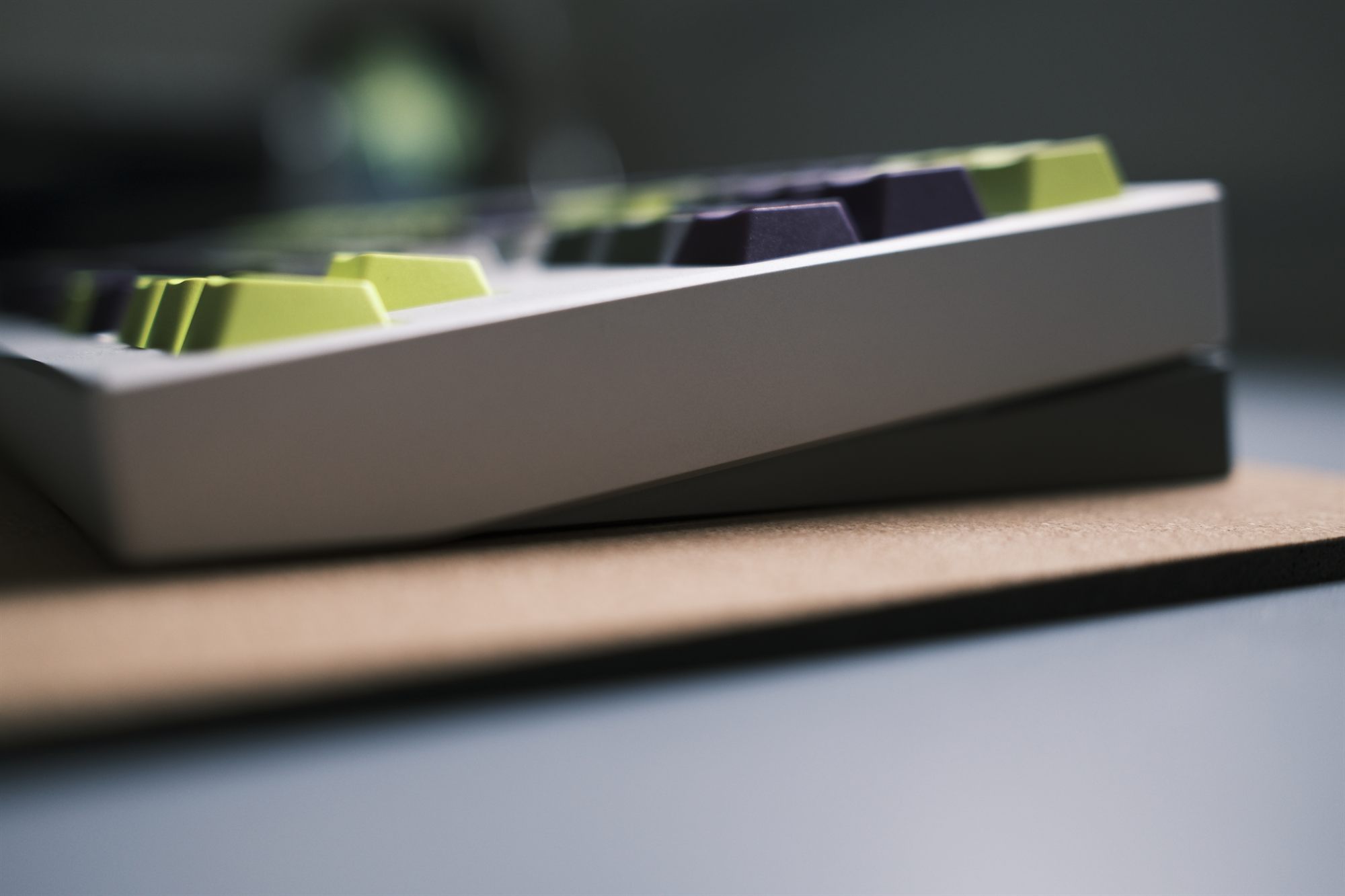

Side elevation with volt keys catching light against the silver case
0859 SIDE ELEVATION
FIELD NOTES

The F1-8X is the cool frame to a hot set. Geon's silver-and-grey aluminium sits on an o-ring gasket mount over a CEM PCB, deliberately understated so GMK Nervewrecker can do the shouting — deep purple against grey, cut through with volt green on the Esc, arrows and accents. Winkeyless, dry Cherry blacks, tuned so the softness of the mount comes through.
